Proveedor internacional lider de automoción



Plataforma de instrumentos individuales

Our Viewline series.

Our Viewline series.

Our Viewline series.
Viewline.

Introducción

World Wide medidores es una plataforma de instrumentación estándar para vehículos especiales y maquinaria estacionaria. Con las soluciones modulares disponibles en tres variantes y en dos tipos de iluminación (frontal o de fondo). Basadas en concepto hay disponibles soluciones personales muy rentables (dial design).

World Wide Gauges Cockpit International

  •  Panel installation
  • LC-display for speedo/tacho gauges
  • Front light technology

Benefits and Features

  • Analogue platform product
  • 52, 80 and 100mm gauges available
  • Different fixation concepts (nut, studs and bracket)
  • Mineral glass lens
  • Metal bezel

Technical Data

  • Operating voltage 12 or 24 V DC
  • Operating temperature -30°C to +85°C
  • IP 64 protection class (front)
  • Front light

World Wide Gauges Cockpit Vision

  • Panel installation
  • LC-display for speedo/tacho gauges
  • Full backlight technology

Benefits and Features

  • Analogue platform product
  • 52, 80 and 100mm gauges available
  • Different fixation concepts (nut, studs and bracket)
  • Mineral glass lens
  • Metal bezel

Technical Data

  • Operating voltage 12 or 24 V DC
  • Operating temperature -30°C to +85°C
  • IP 64 protection class (front)
  • Back light

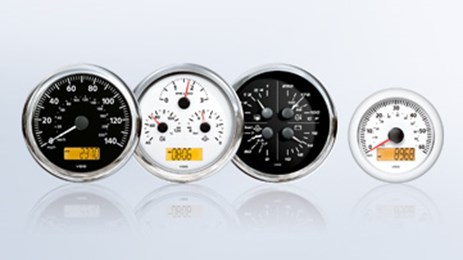

SingleViu

Los indicadores de esfera de la familia SingleViu reemplazan a las 3 actuales familias: WWG, Viewline y CANcockpit. SingleViu cubre todas las aplicaciones de los instrumentos anteriormente citados y proporciona una consistente y flexible solución de alta tecnología. SingleViu tiene una doble entrada para transmisión digital CAN bus y analógica.

The individual instruments for temperature, tank, pressure, voltage and current display are available in a 52 mm diameter. Travelling speed and engine speed indicators are available in diameters of 80, 85 or 100 mm. The devices with 80/85 and 100 mm diameter have an internal sensor and an LCD display that can show the driver different data in “rolling mode”.

For original equipment, retrofit or to replace existing instruments vehicle manufacturers can choose between a total of 74 variants.

All features and benefits at a glance:

  • CAN and analog input
  • Highly resistant thanks to mineral glass, high protection class IP67 and flame-resistant housing
  • Double glazing system prevents fogging
  • Configurability via PC tool and button
  • Design individually adaptable to customer requirements

Regarding the spare parts market, SingleViu instruments can be connected to the existing wiring harness via an adapter. The SingleViu product line is very versatile and can easily adapt to a great number of vehicles, such as agricultural, construction, commercial and motorcycles.


Download: SingleViu brochure
